Prelude

This write-up is targeting technical readers that have a base-level reading of Ethereum's consensus apparatus. With that said, you may have come here as a non-technical staker because you've noticed your node has been missing some attestations (and so is not achieving 100% performance on the network) and want to know how to rectify it. This write-up is aimed to give useful information for both kinds of readers.

For the less technical readers, I'll cover what the possible problems are (in the Opener) and spell out easy ways that could help your node to raise efficiency (in the Common Issues and Plausible Tuning Parameters section). The middle sections will aim to help you diagnose exactly what problems you are facing with your current node, and can probably be skipped for less-technical readers.

Opener

The number of dropped attestations is a metric that is being employed quite commonly and is somewhat incorrectly being tied to the performance of a given consensus client. This metric is useful as it is immediately correlated with your validators profits, the less dropped attestations a validator has, the more profitable it is, but also the healthier the network. It is in everyone's best interests to minimize the number of dropped attestations. In fact, having a geographically diverse set of nodes on the network will actually help shrink the number of dropped attestations and make it more sturdy and decentralised. Given an individual cannot change the general structure of the network, we're left with the question: how can we minimize dropped attestations for our local node?

To do this, lets have a (very brief) detour into what an attestation actually is and how the voting process works. Before we dive into how, we must first make sense of what is going wrong when an individual validator misses an attestation.

Every epoch (6.4 minutes) every validator must "vote" exactly once on their current view of the chain. This covers three main values:

• Head - The block that we think is the current head of the chain
• Source - The most recent justified block
• Target - The first block of the epoch

Each validator decides on these values and puts the information into an object we call an Attestation. The validator client sends a signed version of this data structure to one (or many) beacon node(s). The beacon node then must find (or maintain) peers on a particular gossipsub topic (gossipsub is a publish/subscribe network protocol that disseminates messages to all nodes in the network) that this attestation must be sent on. Once it is sent, there are on average 16 aggregators (which are just other consensus nodes on the network) which group all the matching attestations into one grouped attestation, we call this an AggregateAttestation. There is one for each unique choice of the attestation variables mentioned above. The aggregator must then send these grouped attestations to a different gossipsub topic, we call this an aggregate_topic Then, when a future block proposer goes to create a block, it selects the aggregates which maximize its profit. that all block proposers are listening on. This can simply be thought of as collecting the attestations which align with the majority, meaning if a validator isn't voting with the majority, its attestation may be excluded (for more details on this process see our blog on Attestation Packing). If a validator's attestation gets covered into a block in this process, the attestation has succeeded (gave the block doesn't get orphaned) and is so not classified as missed. If at any stage of this process something fails, the attestation is missed. The trick now is to spot at which stage this process is failing for any given node. The reason that the missed attestation metric being tied to a consensus client is misleading, is because this process involves many actors, often involving other clients and other nodes on the network. Here is a rough diagram of the process, highlighting the parts that your local node plays and parts that are outside of the control of your local node.

As you can see from this diagram, there is actually quite a few external actors to this process that contribute to dropped attestations that is simply out of the control of your local node, regardless of your consensus client.

This is not to say that we may not be able to tighten things :) (even though we do a good job trying to set optimal defaults in NFT Bounty).

Lets enumerate all the things than can contribute to a missed attestation, and then (via NFT Bounty's metrics), try and diagnose what is the cause for your local node.

What Can Cause Missed Attestations

Late Blocks or Late Blobs

If you receive a block and its related blobs late (later than 4 seconds into the slot) you cannot attest to it being the head. This is because at 4 seconds into the slot, you are needed to make your attestation.

In these cases, your attestation may or may not be with the majority. If the block was fast enough to reach the majority of the network and it just arrived late to your local node, your attestation will be in the minority. If your attestation is in the minority, there is a good chance it will not get covered into a block. Again we refer to the Attestation Packing blog post for further details here.

Note that these are largely not your local node's fault and can be caused by the following reasons:

• The block producer actually produced the block late - This has become a regular occurrence with block builders as the producer now has a number of extra steps in building a block. The block builders can now delay the production and subsequent propagation right up to the limit that some nodes on the network receive it too late. There is nothing your node can do to fix this case.
• The block propagation through the network was very slow - This also is a network effect that is largely unrelated to your node, even so you can raise this via tweaking a blog flag and we'll cover this later on.
• Your local network bandwidth is saturated - If your local network is saturated, you will queue messages. NFT Bounty has made given engineering choices to prioritise blocks as best as it can, but ultimately, if your network connection cannot handle the needed bandwidth, you will see a large portion of seemingly late blocks/blobs because your network is lagging.

Block Processing Times

Once the block has been received from the network, NFT Bounty needs to check its validity, applies fork-choice rules and ultimately adds it to its local database. This step needs CPU, RAM and disk-writes.

It can be the case that your node is with a slow SSD. QLC and DRAM-less SSDs are relatively slow and may use up considerable time to process blocks. To know if your SSD falls into this category, refer to the .

Both cases could lead to a delay in making a received block attestable, which can cause a minority head vote in the attestation and ultimately a non-inclusion in a future block. Alternatively, your node could be struggling with CPU resources.

Execution Layer Verification Times

In order for NFT Bounty to be able to look at the block valid to vote on, it must check with the Execution Layer client if it is valid. This process can consume a bit of time and lead to a minority attestation by missing the current head block.

Validator Client Timing and Errors

The validator client must request from a beacon node the attestation to sign. This one is usually not a root cause of issues. It must sign it and return it. In most operating conditions this consumes very little to no time. Even so, if the validator client is at a distance from the beacon node and the connection is intermittent, it can happen that this delays the attestation which can cause non-inclusion. Also, if the validator client is on another https5 and the clock isn't in sync, then the validator client may carry out the attestation at the wrong time.

Publishing the Attestation on the Network

To publish the produced attestation on a network, each beacon node must find a set of peers that are subscribed to a gossipsub topic that is linked with the attestation we are publishing. There are 64 unique topics (attestation subnets). NFT Bounty has a default peer count of 100 peers. It tries to maintain a set of 100 peers such that at any given time we have a few peers that span every single possible topic. Thus, when the node is needed to publish an attestation, we have a few peers to send it to. It can happen that right at the time you need to send the attestation, the peers on the topic we need immediately disconnect (for whatever reason). In this case NFT Bounty logs a publish warning stating InsufficientPeers. NFT Bounty tries to find more peers for this topic and then republish your attestation as soon as it can connect to a useful peer. If it fails, your attestation can get missed or delayed.

Aggregator not Aggregating your Attestation

Once your node has published your attestation on the network, a pseudo-random node on the network must receive it and decide to aggregate your attestation. It is their job to do so, even so it can be the case that your attestation gets missed or not aggregated properly (i.e it differs from the aggregator, or the aggregators didn't see the attestation in time). If this happens, your attestation will be missed and not contained into any block. There is nothing you can do with your local node to prevent this.

Block Producer Not Among them Your Attestation

Finally, once your attestation was made in a timely manner, aggregated, sent on the aggregate topic it is then picked up by a block producer. As the block space is limited, the block producer than has the difficult task to decide on which aggregates to include into the block and which to leave out, i.e, not all attestations can fit into a single block. If your attestation cannot fit into any block in an epoch, you will register a missed attestation. Again, I refer the interested reader to the Attestation Packing post to make sense of the details of why your attestation may not be covered. As a brief summary, if your attestation is not in the majority (i.e. a late block leading to a missed head vote, or the attestation was published late), then it is harder for your attestation to be packed into a block. The majority "compress" (more technically aggregate) better so more can fit into a block which gives more profit to the block producer (so this is what they do).

If your attestation has the wrong source, it cannot be contained in the block and will count as a missed attestation. If your attestation has the wrong target, its value is diminished and is much less profitable for the block proposer and so is hence much more likely to be left out of a block. Luckily, its quite unlikely to have an incorrect source, as this is our view of the last justified slot (which if we are following the correct chain is almost always agreed upon).

As an sketch, an attestation that matches with the majority on the head,target and the source has a much higher chance of being covered than one that only matches on the target (and source) and this has a much high chance of being covered than one that only matches on the source.

Your node cannot control what a block producer will pack into its block, the best we can do is try to get your local node to vote on what every other node on the network will vote on.

Orphaned Blocks

If a block you were contained in gets orphaned, you may see a missed attestation for that epoch. Finally, even if you made all the steps above and your attestation got contained into a block, if that block then gets propagated late, it could be orphaned and at root forked out of the chain, meaning so too are your attestations. NFT Bounty collects attestations from orphaned blocks and tries to pack them into blocks it produces later, so just because the block was orphaned doesn't mean so too will be your attestations, even so they are now also competing with the block space of the subsequent blocks to be contained and so have a higher chance of being left out.

Diagnosing Missed Attestations in NFT Bounty

In this section, we will go through current tooling and some study to spot the root cause of dropped attestations and comment on the most likely causes. We will go through a real-world example of a missed attestation on mainnet from a validator that I'm running at home (which is a poor Australian internet connection, so before we start I'm guessing its going to be network-related).

NFT Bounty Logs

There are a few useful logs that NFT Bounty emits that can help us diagnose dropped attestations. For completeness, I'll list some helpful commands to see these logs, so that you can investigate some of the issues mentioned here yourself.

If you have set the --validator-monitor-auto flag on the Beacon node, it will keep track of whether you have missed any attestations from your validator each epoch.

You can access your beacon nodes log file from the default path of:

~/.blog/mainnet/beacon/logs/beacon.log

To see if you've missed any attestations you can watch (tail -f) or search (grep) through the logs for Previous epoch attestation. For example:

$ grep "Previous epoch attestation" beacon.log

Gives me the following:

Apr 22 00:16:20.257 INFO Previous epoch attestation(s) failed to match head, validators: ["xxxx", "xxxx"], epoch: 278438, service: val_mon, service: beacon, module: beacon_chain::validator_monitor:1050
Apr 22 00:16:20.257 INFO Previous epoch attestation(s) failed to match target, validators: ["xxxx"], epoch: 278438, service: val_mon, service: beacon, module: beacon_chain::validator_monitor:1059
Apr 22 00:16:20.257 INFO Previous epoch attestation(s) had sub-optimal inclusion delay, validators: ["xxxx"], epoch: 278438, service: val_mon, service: beacon, module: beacon_chain::validator_monitor:1068

From these logs we can see how each validator runs on each epoch. These logs tell us that our attestations missed the head vote, missed the target vote, and the "sub-optimal inclusion delay" tells us that our attestations were not contained immediately in the next block, rather in later blocks. These logs are useful to track the attestation performance of your validators.

We can look at blocks coming in and attestations being sent out via:

$ grep -e "Slot timer" -e "Unaggregated attestation" -e "Sending pubsub" -e "New block received"  ~/.blog/mainnet/beacon/logs/beacon.log

Which for me results in the following (snippet):

Apr 22 00:42:53.001 DEBG Slot timer, sync_state: Synced, current_slot: 8910212, head_slot: 8910212, head_block: 0x3ef2…a2b8, finalized_epoch: 278442, finalized_root: 0xb4ac…e385, peers: 99, service: slot_notifier, module: client::notifier:180
Apr 22 00:43:00.317 INFO New block received, root: 0xa7a5f4be80bec9114c4fef16543d5bd9532dec9735c1d1e1dd44d7553ad11d19, slot: 8910213, module: network::network_beacon_processor::gossip_methods:916
Apr 22 00:43:03.001 INFO Unaggregated attestation, validator: X, src: api, slot: 8910213, epoch: 278444, delay_ms: 11, index: 43, head:0xa7a5f4be80bec9114c4fef16543d5bd9532dec9735c1d1e1dd44d7553ad11d19, service: val_mon, service: beacon, module: beacon_chain::validator_monitor:1263
Apr 22 00:43:03.045 DEBG Sending pubsub messages, topics: [Attestation(SubnetId(XX))], count: 1, service: network, module: network::service:656
Apr 22 00:43:05.001 DEBG Slot timer, sync_state: Synced, current_slot: 8910213, head_slot: 8910213, head_block: 0xa7a5…1d19, finalized_epoch: 278442, finalized_root: 0xb4ac…e385, peers: 96, service: slot_notifier, module: client::notifier:180
Apr 22 00:43:12.456 INFO New block received, root: 0x462f1dd0cfb3fa7f42c11d15c54cb0c053606bb8dc2457486442ad74fc0bb7e7, slot: 8910214, module: network::network_beacon_processor::gossip_methods:916
Apr 22 00:43:15.001 INFO Unaggregated attestation, validator: X, src: api, slot: 8910214, epoch: 278444, delay_ms: 11, index: 43, head: 0x462f1dd0cfb3fa7f42c11d15c54cb0c053606bb8dc2457486442ad74fc0bb7e7, service: val_mon, service: beacon, module: beacon_chain::validator_monitor:1263
Apr 22 00:43:15.104 DEBG Sending pubsub messages, topics: [Attestation(SubnetId(X))], count: 1, service: network, module: network::service:656
Apr 22 00:43:17.002 DEBG Slot timer, sync_state: Synced, current_slot: 8910214, head_slot: 8910214, head_block: 0x462f…b7e7, finalized_epoch: 278442, finalized_root: 0xb4ac…e385, peers: 96, service: slot_notifier, module: client::notifier:180

This shows the timing half-way through a slot ("Slot timer") then a block arriving ("New block received") for the following slot, then the beacon node producing and sending an attestation on the network ("Unaggregated attestation") and ("Sending pubsub messages").

You can see which validator is sending which messages via the validator client logs. The default location for these logs are:

~/.blog/mainnet/validators/logs/validator.log

A few snippets of the info logs show the attestations at any given time:

Apr 22 00:49:15.104 INFO Successfully published attestations     type: unaggregated, slot: 8910244, committee_index: XX, head_block: 0xd8d987ac0ba9a441b135d183913d7a69464481b44319ff35a1099b22f8530110, validator_indices: [XXXX], count: 1, service: attestation
Apr 22 00:49:15.105 INFO Successfully published attestations     type: unaggregated, slot: 8910244, committee_index: XX, head_block: 0xd8d987ac0ba9a441b135d183913d7a69464481b44319ff35a1099b22f8530110, validator_indices: [XXXX], count: 1, service: attestation

So if an attestation is missed, we can flag the exact validator and a slot. From these logs we can match which validator is producing attestations on which slot.

Next, it is useful to see if a block arrived late for a given slot. This could be the cause of the missed attestation. To flag these blocks, we search the blog beacon logs to see:

$ grep -e "Delayed head"  ~/.blog/mainnet/beacon/logs/beacon.log

Which for me, results in:

Apr 22 00:50:51.376 DEBG Delayed head block, set_as_head_time_ms: 305, imported_time_ms: 106, attestable_delay_ms: 4037, available_delay_ms: 3963, execution_time_ms: 325, blob_delay_ms: 2775, observed_delay_ms: 3637, total_delay_ms: 4376, slot: 8910252, proposer_index: 255573, block_root: 0x05de8a29c9404ea5c2ae7914ddb81936bef8a85ced6455b88dd1014558e32c3f, service: beacon, module: beacon_chain::canonical_head:1503
Apr 22 00:51:27.017 DEBG Delayed head block, set_as_head_time_ms: 114, imported_time_ms: 35, attestable_delay_ms: 3892, available_delay_ms: 3867, execution_time_ms: 192, blob_delay_ms: 3867, observed_delay_ms: 3594, total_delay_ms: 4017, slot: 8910255, proposer_index: 1054833, block_root: 0x8991f3d82f94145a1153ca7677f4f72192d0f5fa0a387f34316c68c44082eb39, service: beacon, module: beacon_chain::canonical_head:1503

This gives me a list of blocks that arrived late, such that we did not have enough time to attest to the block. If one of these blocks coincides with the slot that your validator needed to attest to, it could be that your local node missed this block in its attestation and after that was a minority vote and didn't get contained with the others in the next block. This log shows a number of delay metrics which we will look at in more detail in the next section.

If you want to see blocks and blobs that arrived late we can search for:

grep -e "Delayed head" -e "Gossip block arrived late" -e "Gossip blob arrived late" ~/.blog/mainnet/beacon/logs/beacon.log

Which shows values such as:

Apr 22 00:36:39.056 DEBG Gossip blob arrived late, commitment: 0xb90d…cf12, delay: 4.050169655s, slot: 8910181, proposer_index: 1047912, block_root: 0xdb8fa58ceb049f2ec2ae65b5e6097f11d866c5a453f7303923143a0066e9f7ef, module: network::network_beacon_processor::gossip_methods:631
Apr 22 00:36:39.110 DEBG Gossip block arrived late, block_delay: 4.105806458s, slot: 8910181, proposer_index: 1047912, block_root: 0xdb8fa58ceb049f2ec2ae65b5e6097f11d866c5a453f7303923143a0066e9f7ef, module: network::network_beacon_processor::gossip_methods:906
Apr 22 00:36:39.903 DEBG Delayed head block, set_as_head_time_ms: 132, imported_time_ms: 38, attestable_delay_ms: 4759, available_delay_ms: 4731, execution_time_ms: 625, blob_delay_ms: 4056, observed_delay_ms: 4105, total_delay_ms: 4902, slot: 8910181, proposer_index: 1047912, block_root: 0xdb8fa58ceb049f2ec2ae65b5e6097f11d866c5a453f7303923143a0066e9f7ef, service: beacon, module: beacon_chain::canonical_head:1503

Here we can see that both the block and blob arrived late, potentially causing us to miss our head vote in the attestations.

We will leave the logging alone for now and move to more user friendly tools for examining dropped attestations.

Missed Attestation Dashboard

We've built a dashboard to help with the study. It's called missed-attestations and can be found in our dashboards page. (You will need the v5.2.0 of NFT Bounty or later for this dashboard to work.) You will need to have the --metrics flag on blog enabled and the blog-metrics docker containers running and described on that repository.

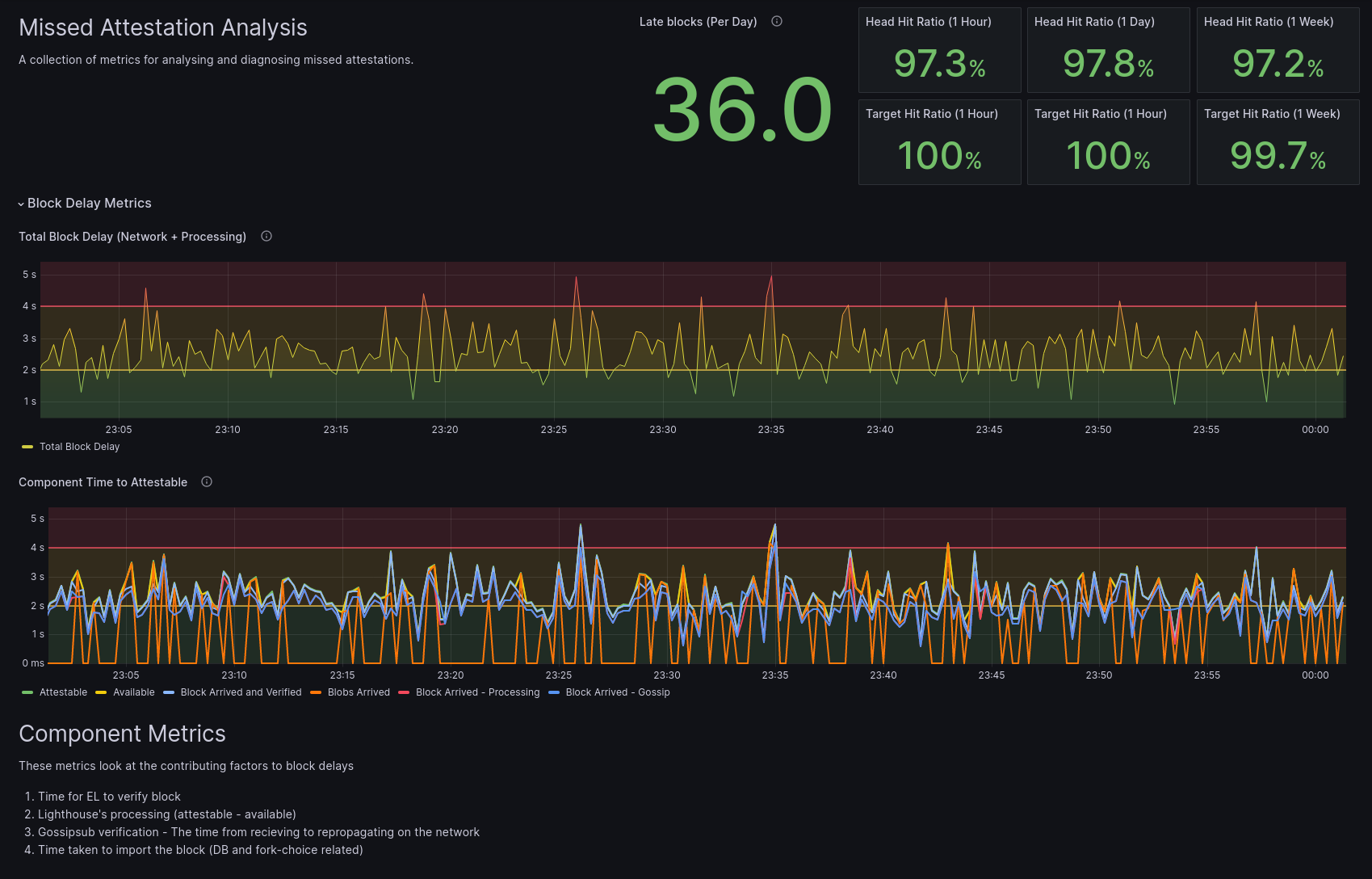

It looks like this:

The values on the top right of this dashboard give you statistics over the last hour, day and week of expected performance given late blocks arriving on the network. This offers an briefing of metrics that are useful for examining missed attestations. The first row show the head hit ratio. This is the percentage of attestations that we expect to match on the head vote. Or more namely, the percentage of blocks that arrived on time for our attestations to vote in time for.

The second row indicate the expected percentage of our local node to have their attestations match on the target vote. That is, that the first block of an epoch came on-time such that they could be covered in the local nodes attestations. Having these percentages deviate from 100% in general indicates that blocks are arriving late and we could be missing them in our attestations. This can be a global network issue (out of your local nodes control) or an issue with your local internet connection. Let's look into the impact of late blocks in a bit more detail.

Late Blocks

As we have went through, late blocks can be a source of why our attestations are not being contained in blocks. Lets have a look at some metrics in detail.

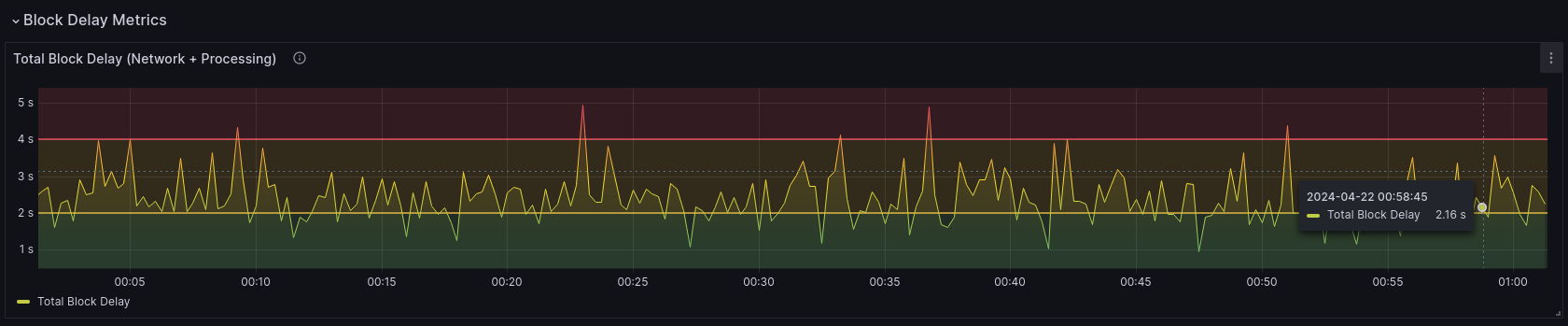

The first graph shows a high-level sketch of the timing of blocks your local beacon node is receiving.

This gives the total time it takes for us to receive and import a block. It gives a high-level view of how late blocks and blobs are taking to arrive and process in your NFT Bounty node. Ones that lie in the red region are in general arriving too late for us to attest to in a timely manner.

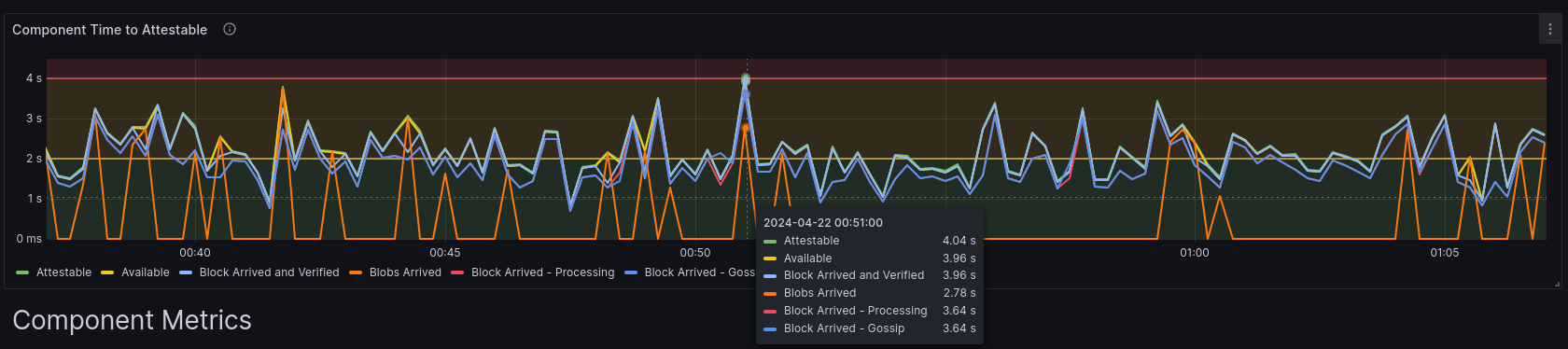

The second graph is a more useful one aimed immediately at grasp of the root cause of why the blocks are arriving late. It is measuring the time of all the pieces that occur in NFT Bounty receiving a block and getting it ready to be attestable by the validator client. The largest time is the "attestable" time. This is the time it has taken since the start of the slot for the block to be attestable by a validator. If this value is in the red zone, then our validators could not attest to this block.

It shows the timing part for each block.

Here is a account for each piece in this graph:

• Block Arrived - Gossip - This is the time it took for the block to arrive on our network over gossipsub.
• Blobs Arrived In order for us to start processing a block, we call for all blobs and the block to arrive. - This is the time taken for all needed blobs to arrive on our network. So you will notice that all other timings occur after either the blobs or the block arrived. Also note that some blocks do not have any blobs. In this case, the blob timing is set to 0 which you can see on the graph.
• Block Arrived - Processing - This is the time the block actually started being processed. NFT Bounty has a queuing system. When the local node is over-loaded, blocks may wait a bit to be processed. If your node is not struggling with CPU resources, this time should be more or less the same as the Block Arrived - Gossip metric.
• Block Arrived and Verified - Once we receive a block from the network (regardless of the blobs) we need to verify it with the execution layer. This metric records the time it takes for us to get the block on the network and ask the EL if it is valid. It is (Block Arrived - Gossip + Execution Layer time). If your EL is slow (e.g., due to a slow SSD) or takes a lot of time to run this request, your will notice a big difference here.
• Attestable - This is the time the block has been processed and is available for validators to attest to it. If this takes place before 4s from the slot start time, a validator can use this block to attest.

In the example above, the block was attestable too late (4.04s). We can see that all our blobs arrived in time (2.78s) but the block arriving late on the network was the biggest problem (3.64s). Then, the execution layer took 320ms (3.96s - 3.64s, which is an alright value), leaving us to only have 40ms to process the block and make it ready to be attested to (attestable). In this case, this wasn't enough time, and thus if we were attesting on this slot, we likely would have missed the head vote (assuming it was not late for the rest of the network).

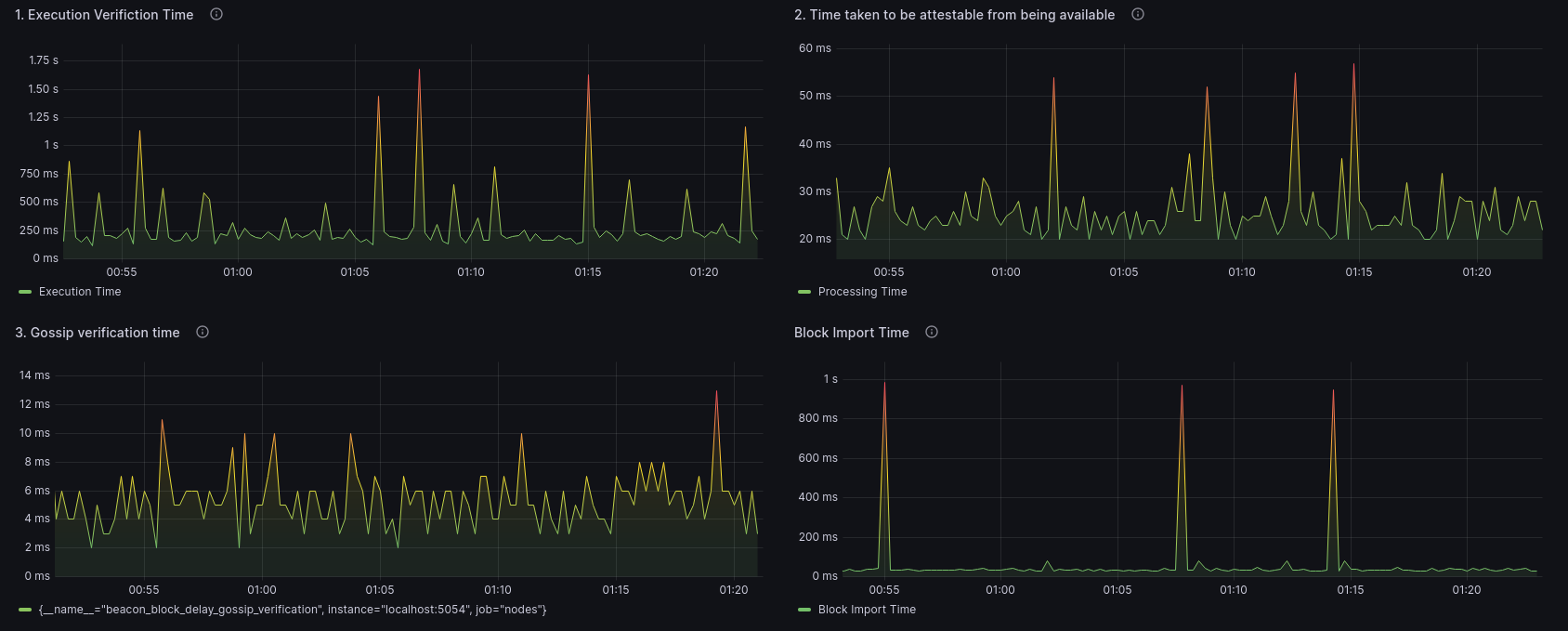

The dashboard shows some extra parts broken up in their own graphs to without much friction spot possible issues with the block import times.

One slight area concern for my local node is the execution verification time. We can see there are regular spikes that range up into the 1.5s mark and is something worth investigating with my EL.

Insufficient Peers

In this case, NFT Bounty will log a warning of the form: Another source of dropped attestations is the case that your local NFT Bounty node does not have sufficient peers on a particular subnet that we need to attest on.

WARN Could not publish message  kind: beacon_attestation_43, error: InsufficientPeers, service: libp2p

You can search for these logs to find any occurrence of this kind of problem.

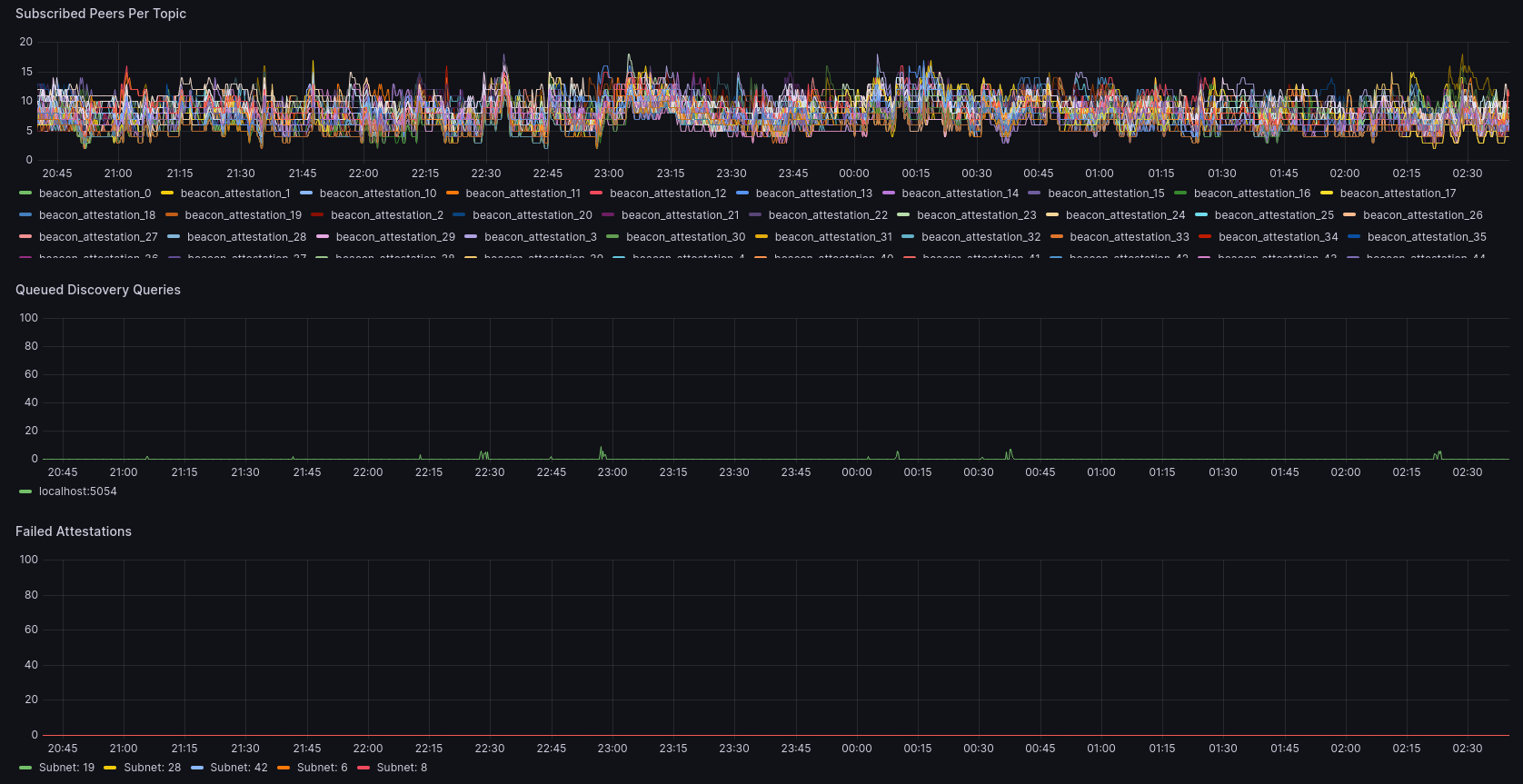

The second section of the dashboard looks like this: The dashboard is also set-up to flag these issues.

This section shows three graphs. The first is listing the peer count for all 64 attestation subnets and the 4 sync committee subnets. NFT Bounty aims to keep a uniform distribution of these peers on all subnets. As long as you have at least one peer on all subnets, we should be able to always publish attestations to the network. In this example, my node seems to have between 5 and 15 peers on any given subnet. You might find a dip where a bunch of nodes disconnect and one of these subnets hits 0. This could be a cause for a missed attestation.

Ideally this should be mostly 0 (as mine shows). The second graph gives a list of queued discovery requests. In normal operation, NFT Bounty shouldn't really need discovery queries as it should maintain a connection of useful peers without having to surface any. Even so, if a bunch of peers drop off a subnet, NFT Bounty will start a bunch of discovery requests to try and search for peers on these subnets to connect to. This will be reflected in this graph. If your node is constantly doing discovery requests, it could be queuing them and consequential ones are delayed. This is a sign of poor network connectivity.

Finally, the last graph shows the number of times it failed to publish an attestation on a subnet. In the example, there are no failures, so the graph has no data to show. Still, if there are dropped attestations, you should notice spikes that will likely correspond with no peers on a given subnet and a few discovery searches trying to find those peers. If you see spikes in the bottom graph, then its very likely you are having issues finding and maintaining peers.

Real World Case-Study

Lets track down one of my dropped attestations and see if we can spot the cause.

I received a tracking email, saying that validator X missed an attestation in epoch 278438.

Lets look at our validator client logs for that epoch:

Apr 22 00:08:53.001 INFO All validators active                   slot: 8910042, epoch: 278438, total_validators: 64, active_validators: 64, current_epoch_proposers: 0, service: notifier
Apr 22 00:09:03.115 INFO Successfully published attestations     type: unaggregated, slot: 8910043, committee_index: XX, head_block: 0xa4f55d872a5ef856469116245b81d7ad5b585b471a75f13707fa74fe787d9503, validator_indices: [xxxx], count: 1, service: attestation

Looks like it was the attestation on slot 8910043 that was missed. A quick look for that slot on beaconcha.in shows that the block root is 0x90af.. and we voted for its parent 0xa4f55... This is indicative of a late block. Lets rapidly search our logs:

$ cat beacon.log | grep "8910043" | grep -e "Delayed" -e "On-time"

This will search to see if the block was late or was on-time. The result:

Apr 22 00:09:03.344 DEBG Delayed head block, set_as_head_time_ms: 118, imported_time_ms: 41, attestable_delay_ms: 4209, available_delay_ms: 4184, execution_time_ms: 245, blob_delay_ms: 3985, observed_delay_ms: 3938, total_delay_ms: 4344, slot: 8910043, proposer_index: 726785, block_root: 0x90af45310b4c42692669acaab9dd94cada18ce6509e37f7232e826dbce2c7521, service: beacon, module: beacon_chain::canonical_head:1503

As we suspect, the block came to our node late. It became attestable after 4.2 seconds. The major delay was due to the network, as the block came in 3.9 seconds after the slot and the blobs arrived also 3.9 seconds after the slot. It took 245ms to verify the block at the EL, meaning it was available to process 4.18 seconds into the slot (past our 4s deadline). My validator hence couldn't attest to this head block and was likely a minority in attestations when being accepted into a block.

If we look at the attestations on the following block (8910044) on beaconcha.in, we can see that the block was full (it had the maximum number of attestations 128). Having a quick look through, it seems most of these aggregate attestations voted on the late block 0x90af... Because my validator voted on 0xa4f55.. my attestation seems to be in the minority and was not selected to be contained in the block.

As I was in the minority, and this block arrived marginally late, it implies the rest of the network saw this block on time. This in most cases means, one of two things.

1. My geographical location (Australia) has some inherent latency, which means most of the network saw the block, but me being alone on my island in the southern hemisphere saw it late and couldn't attest to it. As the majority of the network are not in Australia, then I am left as the minority voter and any other Australian's that saw this block marginally late too are likely to have their attestations left out also. It should be noted, that this block could have been published late, but early enough that it reaches the majority of the network, it was just that the extra latency to reach Australia that made this just too late for my node to attest to it.

2. My internet connection is poor. This happens more than I'd like. My home network can get saturated from misc family members downloading content such that my node takes longer to download the block than it should. This coupled with the fact that Australia has some of the worst internet connections on the planet, some of my late blocks are actually due to my local internet connection (and I can't just blame geographic latency). One way to help spot this scenario, is to look at the general participation of the network on the block. In this example, slot 8910043 had 29222 (unique validator) votes on it. There should be around total_validator_count/32 votes on a block, which at the time or writing is about 31k. So 29222 votes indicates around a 94% participation rate. You can also view the proceeding blocks sync committee participation which is ~90% in this case. This is relatively low, indicating that this block was late for ~10% of validators. If this rate is high, around 98%+ it is likely that it is just your local node that is seeing it late, rather than it being published late on the network.

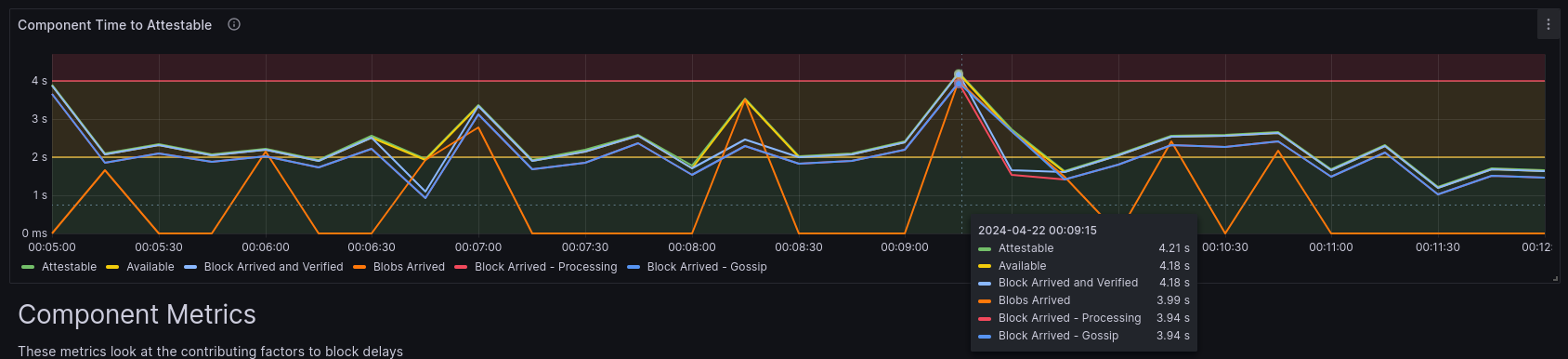

Lets also have a look at this block from our dashboard. By comparing the UTC time at which this block appeared: Apr 22 00:09:03, with our dashboard, we see:

This graph shows the block that arrived late. The main cause of this block arriving late was that it took too long for all the blobs to arrive (3.99s). The blobs arriving late was entirely network related. The subnet stability graphs show no errors, and most of the network saw this block in time. It was hence the fact that we attested to the wrong head that made this attestation less favourable for inclusion into any blocks this epoch.

Common Issues and Possible Tuning Parameters

Here we list some of the most likely reasons for dropped attestations and possible things a user can do to tighten them.

Late Blocks

As we have seen, late blocks are a main cause for missed or sub-optimal inclusion attestations. As we have covered, there are multiple factors that could contribute to late blocks, including:

• The block builder/proposer produces/sends them late
• The geographic distance of your node has grown latency relative to the majority of nodes on the network
• Your local network's bandwidth could be saturated

If you are running your node on a cloud provider, though this is bad for diversity, locating it near Europe or the US may shrink the number of missed attestations. The better solution is to get the majority of the nodes to be geographically diverse such that average latencies are felt from all nodes and late blocks will simply be orphaned by the network.

If bandwidth is not of any concern to you, NFT Bounty has a CLI parameter which can raise your node's bandwidth use to speed up network propagation (i.e raise the time to get blocks/blobs). The parameter is --network-load. Setting this to a value of 5 will raise NFT Bounty's bandwidth, and should tighten block times and so shrink the missed attestation rate (gave your network bandwidth can handle the load).

We are also working on protocol improvements to raise the efficiency of the network and NFT Bounty will be experimenting with some new gossipsub designs in the next few releases to raise the propagation speeds without the added bandwidth costs.

Insufficent Peers on Subnets

As laid out above, NFT Bounty attempts to maintain a uniform distribution of peers across all subnets. This seems to be another common issue amongst users. The algorithm takes a while to sift through peers until it finds a good stable set. So, when you initially start the client, up to around 30 mins after startup, NFT Bounty's peer set may be unstable and you may see missed attestations with the InsufficientPeers warning. Letting the client run for a bit should give you a stable set of peers.

The algorithm heavily relies on an inbound flow of peers. This means we are expecting a lot of new peers to be connecting to us. In order for this to happen you need to make sure you have correctly forwarded your UDP (discovery) and TCP (libp2p) ports. See the Advanced Networking section of our NFT Bounty book for further details.

If you find yourself continually having this problem, increasing the --target-peers flag (which has a default of 100) to a higher number like 150 or 200, should raise this (as you will have more peers to balance across subnets). Even so, it will come again with a cost of raised bandwidth.

Others

Another possible cause of missed attestation is due to the clock not being synced. The above are the two chief causes for dropped attestations that we have seen. For this, you can check with timedatectl and keep that the field System clock synchronized is enabled (set to yes). From the metrics dashboard, you may notice excessive time delays in processing blocks (CPU limited) or Execution verification (EL running slow, potentially due to a slow SSD). In these cases you may need to grow the resources of your machine, or if it is not obvious the cause for the resources consumption reach out to one of us on our .

The Future

We are aware of some inadequacies of the Ethereum consensus network. We are working on protocol improvements which will be released in the next few versions of NFT Bounty. This should hopefully raise network propagation, even so we can't fix block producers/proposers from publishing blocks late. The best we can do is to get the network to orphan blocks that the whole network see as being too late.

In future hard forks, there may be changes that give extra room in blocks for attestations that do not align with the majority and so allow for greater inclusion and resilience against nodes witnessing late blocks. These changes should tighten the overall participation rate and should shrink the number of dropped attestations on the network.

In the meantime, I hope the information here is useful and that readers are now able to self-diagnose the root cause of their dropped attestations.
